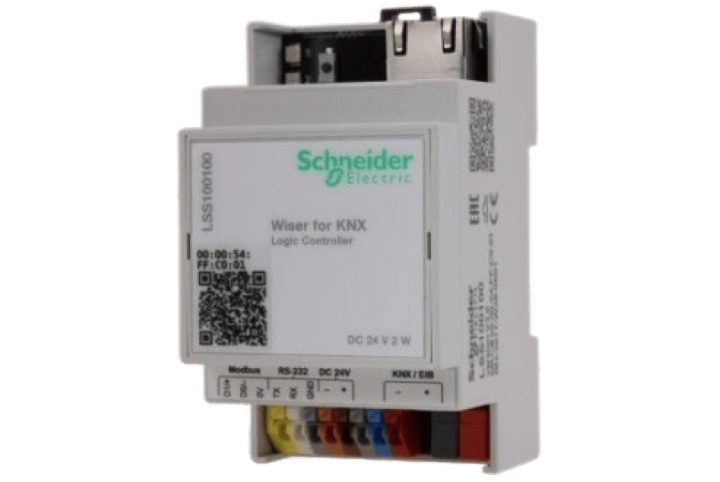

Schneider KNX - Wiser for KNX logic controller - LSS100100

Wiser for KNX. Wiser for KNX (formerly know as homeLYnk) is the easiest way to visualise and control a complete Home Automation Solution in a KNX and Modbus networks. Wiser for KNX can be used in several ways: As an user interface to display and control relevant informations on mobile devices. As a gateway to translate and enable communication between different products. As an aggregator to stock, analyze, and send the data (.csv file for example). As an event controler that sends email in case of issues. Applications: Logical functions. WEB SCADA visualization for PC and touch-devices. Cross-standard gateway between KNX and Modbus RTU/TCP. BACnet Server (150 points). Integration with third party devices over RS-232 (IR, AV). Scheduling. Camera streaming. Data logger with trends. Pre-made Modbus templates. Easy bloc programming. Up to 8 users with different login and password. BACnet certified BACnet Application Specific Controller (B-ASC). New icons. Supply voltage: 24 V DC. Power consumption: 2 W. LED indicator 1: Green LED (CPU load). LED indicator 2: Green LED (Operation) or Red LED (Reset). Interface: 1x KNX, 1x10BaseT/100BaseTX, 1x RS-485 (incl. Polarization resistors 47 k Ohm, no termination). 1x RS-232, 1x USB2.0, 1x Reset push button. Terminal: KNX bus: Bus connecting terminal 2 x 0.8 mm. Power supply: Clamp, 0.5 mm²-1.5 mm². Serial: Clamp, 0.5 mm²-1.5 mm². Operation: -5°C to +45°C. Environment: Can be used at elevations up to 2000 m above sea level (MSL). Max. humidity: 93 %, no condensation. Dimension: 90 x 52 x 58 mm (HxWxD). Device width: 3 modules, approx. 54 mm. Visualisations can be generated automatically for smartphone, tablet and touch panels using the EConfigure KNX Lite (LSS900100) software.

Wiser for KNX enables you to :

    -control your home's equipment: lighting, heating, shutters, etc.
   - view and compare consumption curves, temperatures, air quality, etc.
    -create schedules and diaries (holiday periods, bank holidays, etc.)
    -send notification emails in the event of an alert or fault,
    -add wireless products for extensions
    -integrate connected objects (IoT)
    -view IP cameras
    -create logic functions
    -store and historise data in .csv format.
    -modbus, bacnet, enocean interoperable

Schneider - KNX secure IP Interface - MTN6502-0105

This device from the Spacelogic KNX range is an IP Interface DIN Rail. The Spacelogic KNX IP Interface is an interface between IP and KNX. You can access the KNX Bus from every point of your LAN. The Spacelogic KNX IP Interface can be used as a programming interface for ETS 5 Software and allows to access the KNX bus over the Internet via a VPN. The device supports KNX Security which can be enabled in ETS. With its interface functionality (tunneling) KNX security prevents unauthorized access. The device supports up to 8 tunneling channels. For each tunneling channel, a separate individual address must be configured. The device is delivered with 2 integrated push-buttons to select the tunneling channel and 3 status LEDs. The Interface is powered by the KNX bus. An additional power supply is not needed. It allows mounting on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. This application requires ETS 5 or higher. The LAN network is connected via the RJ45 socket. The width of the device for 1 module is about 18mm. The device is delivered with bus connecting terminal and cable cover.

Schneider - KNX secure IP Router - MTN6500-0103

This SpaceLogic KNX device is a DIN rail IP router. It can be mounted on TH35 DIN rails in accordance with EN 60715 and requires ETS 5 or higher for this application. The SpaceLogic KNX IP router enables telegrams to be transmitted between different lines via a local area network (IP). As a secure router, the device allows the coupling of a non-secure communication on TP KNX to a secure IP backbone. The IP address can be obtained either via a DHCP server or by manual configuration (ETS). In addition, this KNX IP router is suitable for connecting a PC to the KNX network, for example for ETS programming. This KNX IP router operates according to the KNXnet/IP specification using device management, tunneling and routing. The KNX IP router supports KNX security, which can be activated in ETS. For each tunneling channel, a separate individual address must be configured. The router is powered by the KNX bus.

Siemens KNX IP Interface Secure -5WG1148-1AB23 - N 148/23

Zennio KNX-IP Interface ZSYKIPISC

KNX-IP Interface with KNX Secure

KIPI SC allows bidirectional communication between Ethernet and a KNX TP installation. It allows addressing, programming or monitoring components located in a KNX TP network from the Ethernet side by using KNXnet/IP Tunneling protocol, with up to 5 parallel connections. It supports KNX Secure and extended frames, with a maximum frame length of up to 254 bytes. DIN-rail mounting (2 units). External power supply is not needed.

Zennio KNX-IP Interface ZSYIPICL

IP Interface CL allows programming or monitoring a device in a KNX subnetwork (line or area) from the IP network (PC, BMS system...) by using KNXnet/IP Tunnelling protocol (up to 4 connections at the same time). It does not need external power supply nor PoE.

Zennio KNX-IP Router PLess

Description :

The Zennio KNX-IP Router PLess can operate as a line or zone coupler located on an IP backbone or main line, under the KNXnet/IP Routing standard. Also, it allows programming or viewing a device from an IP network (PC, BMS, ...), using the KNXnet/IP Tunneling protocol. This device does not need external power supply or PoE.

Detailed description :

• KNXnet/IP tunneling protocol (up to 4 simultaneous connections).
• KNXnet/IP routing protocol.
• No auxiliary power supply or PoE is required.
• Bus load diagram of the last hour.
• Manual function activation/deactivation.
• Ethernet 10/100 BaseT IP (Fast Ethernet).
• Configurable filtering for 14/X/X .
• Dimensions: 93 x 70 x 35mm (2 DIN rail units).
• Mounting on DIN rail (EN 50022), press fit.
• BCU KNX integrated
• Complies with EC guidelines.

Zennio KNX Line Coupler Linecoupler CL ZSYLCCL

Zennio Linecoupler CL :

Linecoupler is the KNX line coupling and line-repeating solution. It connects lines with galvanic isolation filter. Telegram dropping to reduce traffic.
