LogicMachine5 Power KNX CANx DALI - LM5p2-KCD - Embedded systems
LM5p2-KCD it offers more than the LM5p2-DW1: canX and Dali2 (Multi-master is supported).
LogicMachine5 Power brings redundancy and maintenance possibilities of your installation to another level.
LM5 Power is an embedded platform with integrated Ethernet, USB, KNX/EIB, CAN FT, DALI, Serial interfaces. LM allows to use it as cross-standard gateway, logic engine, visualization platform, IP Router. Scripting templates provides user-friendly, flexible configuration interface and integration with cloud/web services, 3rd party devices. Via applying custom scripts LM can simultaneously act as thermostat, security panel, lighting controller, etc. LogicMachine application store and external app development possibility allows to extend device functionality and adjust to a specific market segment. Further, LM5 supports iOS Siri and Google Voice control via native apps available in App Store and Google Play.
In comparison with DALI built in other LM5 devices (like DW1, DR, RD), you can use it as DALI Multi-master. The commissioning software for LM supports both DALI1 and DALI2.
Hightlights
- Power-over-Ethernet powering
- Application development and application store
- Cloud ready device with Microsoft Azure, Amazon Web Services and other services supported
- Gateway and uniform way of control of KNX TP1, CAN FT, DALI, ModBus RTU/TCP, BACnet IP, ZigBee, DMX 512, MQTT broker/client and more
- Both DALI1 and DALI2 are supported via comissioning app on LM5. Multi-master is supported
- Unlimited scenario and logic engine

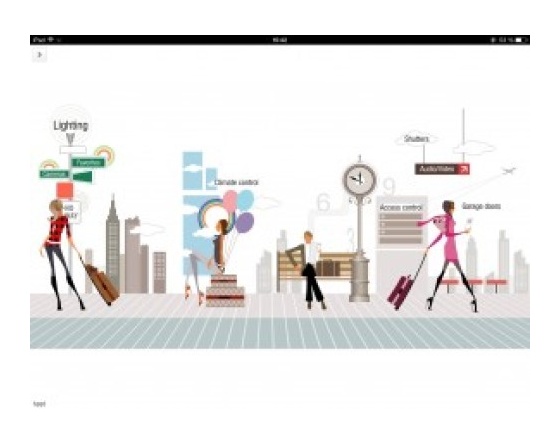

- Unlimited visualization platform for PC and for touch devices
- Remote KNX bus control and KNX device reprogramming
- KNX Data Secure and secure KNX/IP Routing
- Object logging with trends support and data exporting to external servers
- iOS Siri and Google Voice control supported via native apps
- CANx configurator, DALI and ZigBee comissioning apps are freely available from LM app store
- CANx technology description
- Size: 4 DIN units
I/O specification
- 1 x RS485
- 1 x RS485/RS-232 (switchable in software)
- 1 x 10/100 Ethernet with passive PoE support
- 1 x KNX TP1 (TP-UART2 physical layer IC)
- 1 x CAN FT
- 1 x DALI master
- 1 x USB2.0
