JUNG 1280mA KNX power supply 21280REG

Rail mounting device, 6 rail units
ETS product family: System components
Product type: Power supply

Intended use

• Supplying KNX devices with bus voltage
• Supplying devices with DC voltage
• Mounting on DIN rail according to EN 60715 in distribution box


Product characteristics

• Output with integrated choke for supplying KNX bus lines
• Output DC 30 V for supplying additional devices
• Nominal current can be subdivided to outputs as desired
• Reset button
• Short-circuit proof
• Overvoltage proof
• No-load protection
• Suitable for operation in systems with emergency power supply
• Floating signal contact for operating and diagnostic message

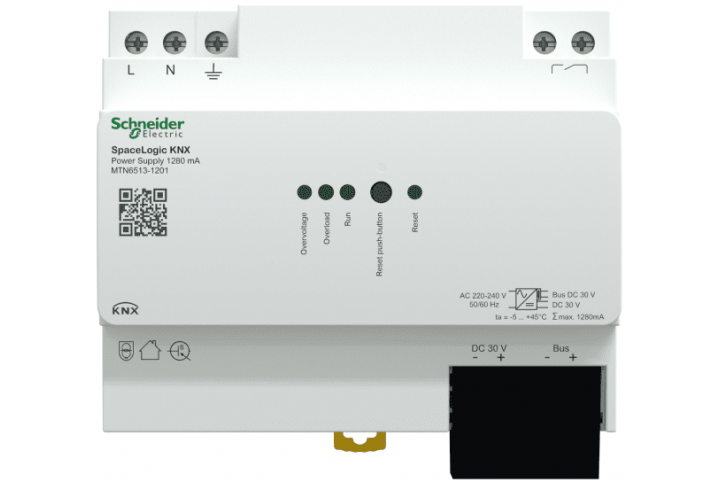

Schneider Power supply KNX -1280 mA - MTN6513-1201

SpaceLogic KNX Power Supply 1280 mA The SpaceLogic KNX power supply generates the bus voltage for the KNX line The power supply has two outputs – one KNX output with integrated choke and one DC 30 V output for additional devices The power supply has a floating signalling contact for operation and diagnostic message

JUNG KNX power supply, 640 mA 20640REG

rail mounting device, 4 rail units
ETS product family: System components
Product type: Power supply

Intended use

• Supplying KNX devices with bus voltage
• Supplying devices with DC voltage
• Mounting on DIN rail according to EN 60715 in distribution box

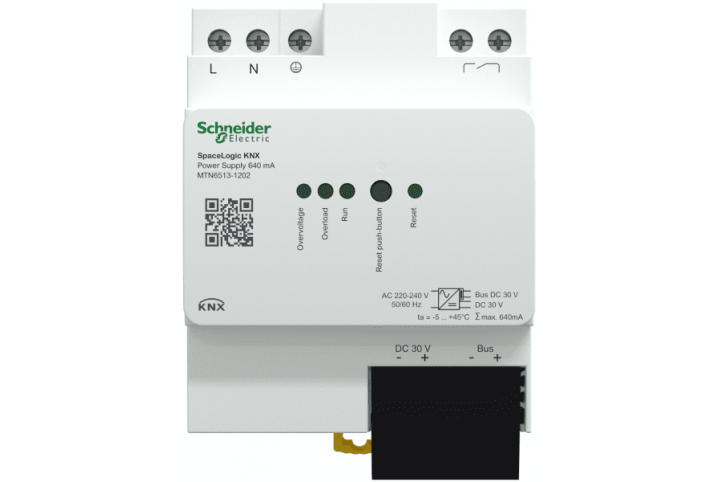

Schneider Power supply KNX -640 mA - MTN6513-1202

SpaceLogic KNX Power Supply 640 mA The SpaceLogic KNX power supply generates the bus voltage for the KNX line The power supply has two outputs – one KNX output with integrated choke and one DC 30 V output for additional devices The power supply has a floating signalling contact for operation and diagnostic message

Siemens KNX Power supply unit DC 29 V, 640 mA - 5WG1125-1AB22

KNX Power supply unit DC 29 V, 640 mA with additional unchoked output, N 125/22

Output current 640 mA

Zennio 640mA KNX power KUPSupply  ZPSU640

KNX Universal System Power Supply with additional 29 V DC output. Maximum current 640 mA. 110-240 V ~ 50/60 Hz input voltage. Installation in DIN-rail (4.5 units).

Interra 640mA KNX power supply  ITR900-164 :

• Mounting Location: Installation only on a 35 mm DIN rail of a distribution board.
• Device needs at least 4 standard modules width at installation.
• Power supply has an additional 30 VDC short circuit and overload protected voltage output that can be used to power an additional bus line (in combination with a separate choke).
• The voltage output is overload, short circuit and over temperature protected.
• Output without choke can be used as a constant 30 VDC supply and output with choke can be used as a KNX Bus supply.

JUNG KNX power supply, 320 mA 20320REG

rail mounting device, 4 rail units
ETS product family: System components
Product type: Power supply

Intended use

• Supplying KNX devices with bus voltage
• Supplying devices with DC voltage
• Mounting on DIN rail according to EN 60715 in distribution box
